#1. Central Link light-rail
Beacon Hill segment

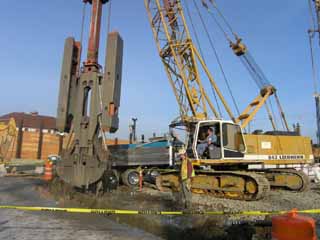

Photo courtesy Sound Transit
The Beacon Hill subway station will be constructed from the top down, using slurry wall construction techniques to build the 181-foot elevator shaft.







Address:
Beacon Hill, Seattle

Cost:
$279,964,375 (original contract)

Type of contract:
Hard bid

Start of construction:
June 2004

Expected completion date:
Summer 2008




Description

The Beacon Hill tunnel and subway station and the Mount Baker Station are part of the 14-mile initial segment of the Sound Transit Central Link light-rail line.

Image courtesy Sound Transit
Commuters will take elevators at Beacon Hill Station to reach the light-rail tunnel platform below.

The line will provide a high-capacity commuter connection from downtown Seattle to Seattle-Tacoma International Airport. By 2020, a projected 3,000 commuters will use the Beacon Hill station.

The mile-long, light-rail tunnel alignment will consist of two parallel tunnels through Beacon Hill that will be constructed with a tunnel boring machine. The contract includes sections of elevated track at each end of the tunnel. The elevated Mount Baker Station will be located at the east end of the tunnel.

The 150-foot-deep subway station will be accessed by high-speed elevators.

From the surface, a 181-foot-deep, 46-foot-diameter main shaft will be constructed to reach the tunnel platform. This shaft will house four high-speed elevators, emergency staircases, ventilation shafts, and mechanical and electrical equipment. The shaft will be constructed from the top down, using sequential excavation mining techniques.

A 41-foot-wide concourse will connect the eastbound and westbound tunnel platforms. The station will have artwork and architectural finishes.

The west portal of the tunnel will be under Interstate 5, east of Airport Way. Beacon Hill Station will be bounded by Beacon Avenue South, South Lander Street, 17th Avenue South and South McClellan Street.

The east tunnel portal will be east of 25th Avenue South and south of South McClellan Street. McClellan Station will be near the junction of Rainier Avenue South, Martin Luther King Jr. Way South and Winthrop Street.

PROJECT PARTICIPANTS

Contractor:

Obayashi Corp., 5000 Shoreline Court, San Francisco, CA 94080, (650) 246-1420

Architect:

Otak, 117 S. Main St., Suite 400, Seattle, WA 98104, (206) 224-7221

Engineers:

Obayashi Corp.

PB Construction Services

Hatch Mott MacDonald Jacobs Civil

Puget Sound Transit Consultants

Berger/Abam Engineers

Shannon & Wilson

Golder Associates

Owner:

Sound Transit




Other Participants
Anderson Environmental Contracting
Bees Painting
Boxwood
Catherine Bassetti
Condon-Johnson & Associates
Corrosion Mitigation
Deeny Construction Co.
Eagle Electric
Elcon Corp.
Emerald City Fence Co.
Federal Firesafety
Geo-Tech Explorations
Hokkaido Drilling
J Harper Contractors
JVH Construction Services
LeaJack Concrete Construction
Long Painting Co.
Majestik Trucking
Matson Carlson
McDowell NW
Moniz Art & Architecture
Moretrench American Corp.
Murase Associates
NRC Environmental Services
Northwest Cone Exploration
OMA Construction
Otto Rosenau & Associates
Pac Rim Geotechnical
PCS Freight
Pyramid Electric
Quality Fence Builders
Radiance Lighting
Rebar International
Solatanche
SSA Acoustics
Sunbelt Rentals
Thunderbird Electric
Traffic Control Services
Tri-State Construction
Weinstein|AU
