March 3, 2014

Rainier Beach Community Center and Pool

Photos courtesy of ARC Architects [enlarge]

[enlarge]

[enlarge]

[enlarge]

[enlarge]

Rainier Beach Community Center and Pool opened in September at 8825 Rainier Ave. S.

The $25 million center was built on the site of the former community center and pool.

Designers set goals of reducing energy and water use. The building is set to earn LEED gold.

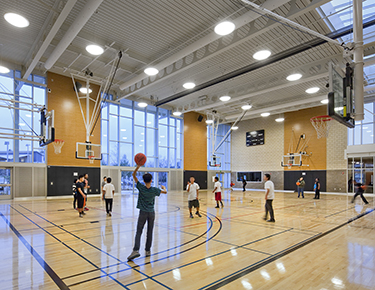

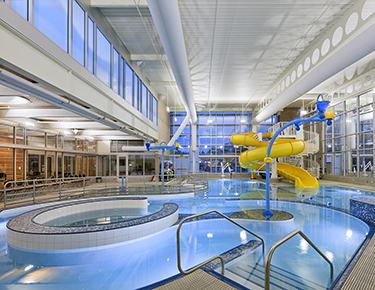

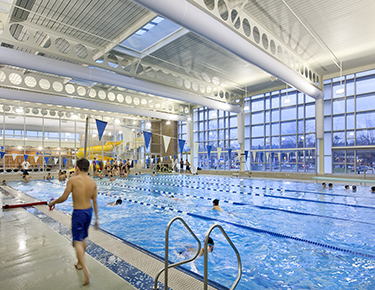

The center includes a gym, multipurpose room, kitchen, computer lab, arts and crafts room, a recreational pool with waterslide and wading pool, and a lap pool.

Heat-recovery dehumidification units were used along with radiant slab heating, ground-source heating and cooling, and evacuated tube solar water heating. Activity and gymnasium spaces are cooled through natural ventilation.

Rainwater provides 90 percent of the water for toilets and urinals.

Construction materials came from the old center, including wood beams for siding and concrete foundations for fill.

Owner: City of Seattle, Department of Parks and Recreation

Contractor: CE&C, Inc.

Architect: ARC Architects

Aquatic designer: Councilman-Hunsaker

Landscape architect: Nakano Associates

Structural engineer: KPFF Consulting Engineers

Mechanical engineer: Stantec

Electrical engineer: Travis Fitzmaurice and Associates

AV and acoustic engineer: BRC

Civil engineer: GHD

Food service designer: George E. Bundy and Associates

Cost estimator: AECOM

Do you have photos of recent projects? Share them with DJC readers. Send high-resolution images and information to lisa.lannigan@djc.com.
